198-MD

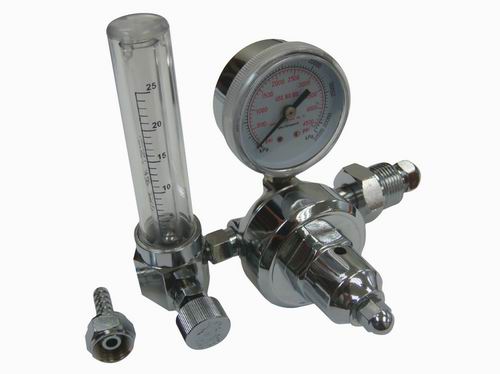

Flowmeter Regulator for Argon, CO2 - #198-Medium Duty

Chrome-plated Brass Body

Applications :
• For MIG & TIG welding to provide accurate regulation of gas flow.
• For Commerical, industrial and laboratory use.

Features :
• Single stage construction.
• Forged brass body for maximum strength.
• Flowmeter is backpressure compensated.
• Polycarbonate flow tube and outer cover.
• Sintered brass inlet filter.
• Max. Inlet Pressure 3000psi.
• Calibrated at 50PSIG.

Item  No.	Gas Service	Inlet  Pressure Gauge	Flow meter   (LPM / SCFH)	Inlet  Connection	Outlet Connection	Weight (kg)
#198	Ar, CO2	2", 0-4500psi	Round tube  Marking :                             Argon = 0-25LPM	CGA580	5/8"-18(F)RH	1.0
