AS-4122F

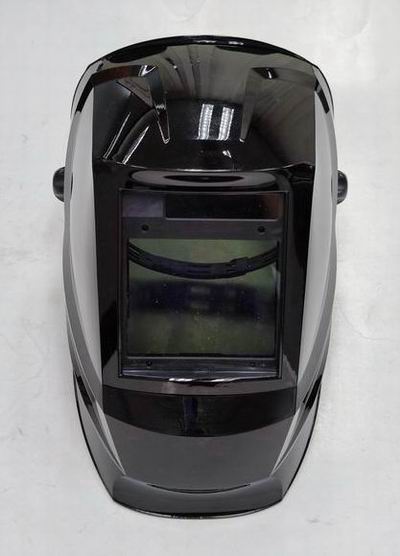

Auto-Darkening Helmet - AS-4122F
Item No. : HM-GD4122F
Features:
• Use high quality LCD and multilayer optical interference filter, provides clear view and permanent UV/IR protection up to DIN 15.
• Power supply by solar cells, Lithium batteries (Replaceable).
• Helmet Shell made of high impact resistant Polyamide Nylon.
• Ample mask space, especially for ears and bottom flare for neck protection.
• CE EN175:B, ANSI Z87.1, CSA Z94.3.
Technical Specifications:
ADF Cartridge Size
|
114 x 133 x 9.5mm (4-1/2" x 5-1/4" x 3/8")
|
LCD Viewing Size
|
100 x 83.4mm (3.94" x 3.28")
|
Light State Shade
|
DIN 3
|
Dark Variable Shades
|
DIN 5-9 / 9-13 <Internal>
|
UV/IR Protection
|
Up to DIN 15 at all times
|
Switching Time (light to dark)
|
0.08ms
|
Delay Time (dark to light)
|
Adjustable MIN-MAX for (0.1~0.9s) <Internal>
|
Sensitivity
|
Adjustable (LO-HI)<Internal>
|
Arc Sensors
|
4
|
Grind Function
|
Yes <Internal>
|
Low Amp TIG Adapted
|
Yes, from 3 Amp
|
Power Supply
|
Solar cell and CR2450 battery
|
Operation Temperature
|
-10°C ~ 65°C (14°F ~ 149°F)
|
Storage Temperature
|
-20°C ~ 85°C (-4°F ~ 185°F)
|
Inside PC lens
|
106 x 89.5 x 1mm (4.17” x 3.52”)
|
Outside PC lens
|
114 x 133 x 1mm (4-1/2” x 5-1/4”)
|
Mag Lens Slot
|
Yes
|
Color
|
Black, Blue, Iron Grey
|
Weight
|
600g
|
Warranty
|
2 years
|
Packing :
• Each with a color box, 14 pieces in a carton
• 1 Manual per helmet
